Evolve Project BMX Bike



RIDES LIKE A BIKE
Many eBikes place their motors and batteries in positions that are easiest and/or cheapest, with little regard to the effects on the rider experience. Frame geometry and weight distribution are pivotal in electric bike design, optimising rider comfort and bike handling. The carefully calculated angles and weight placement on Project BMX lower the centre of gravity, enhancing stability and control, especially at higher speeds or during tight maneuvers. This balance allows for a natural riding posture and facilitates intuitive control, improving the interaction between rider and machine.

Battery

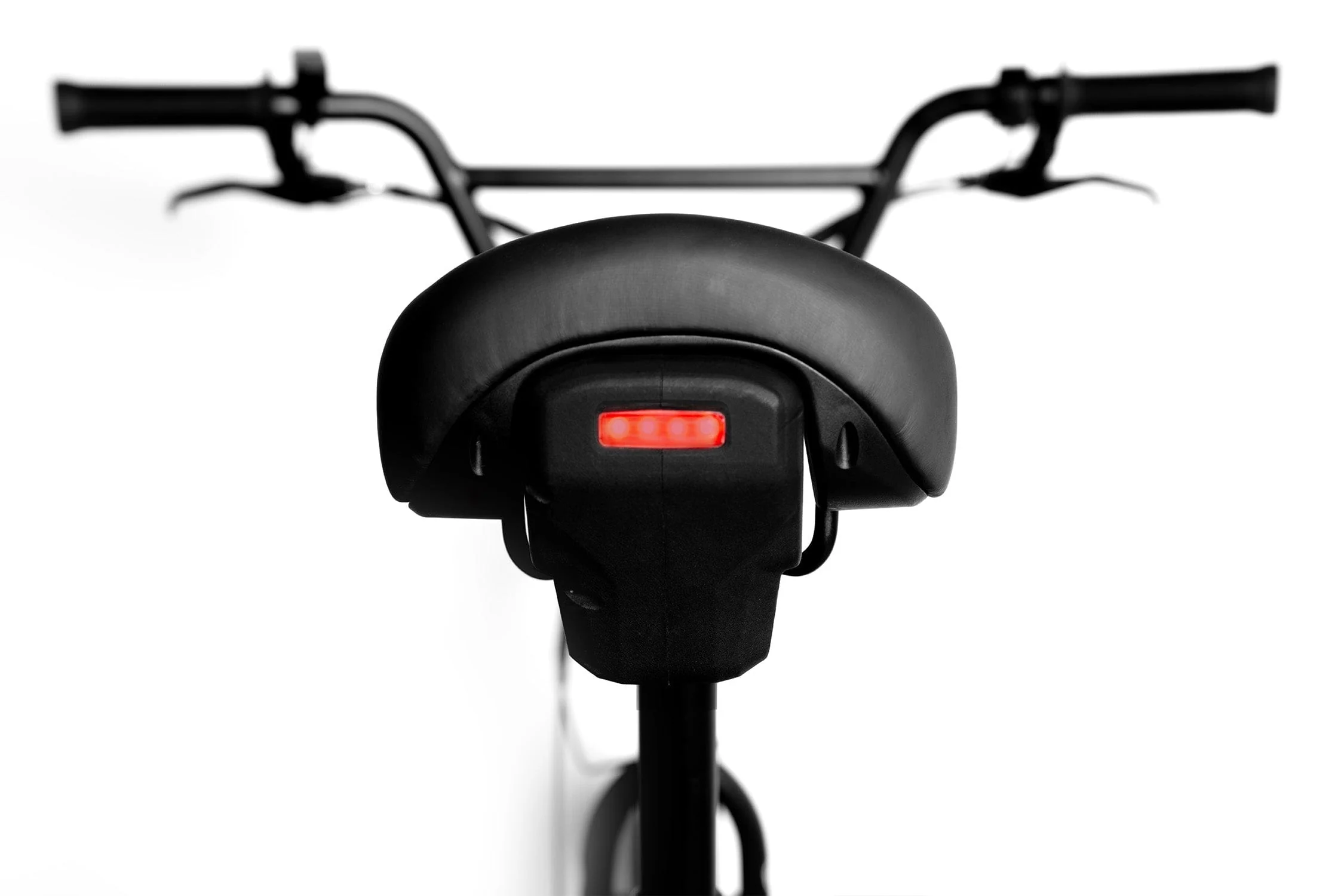

Introducing a distinctive 36V battery system intricately designed to seamlessly integrate with the Project BMX drive system. The battery pack achieves an ideal harmony between range and power, discreetly nesting within the saddle to preserve the classic BMX cruiser frame aesthetic.
This innovative system facilitates effortless battery swapping, empowering riders to expand their adventures with added range.
Crafted in collaboration with VELO, the bespoke saddle seamlessly merges traditional adjustability, comfort, and innovation. It incorporates a built-in rail and lock mechanism, providing a secure home for the Evolve 36V Battery.

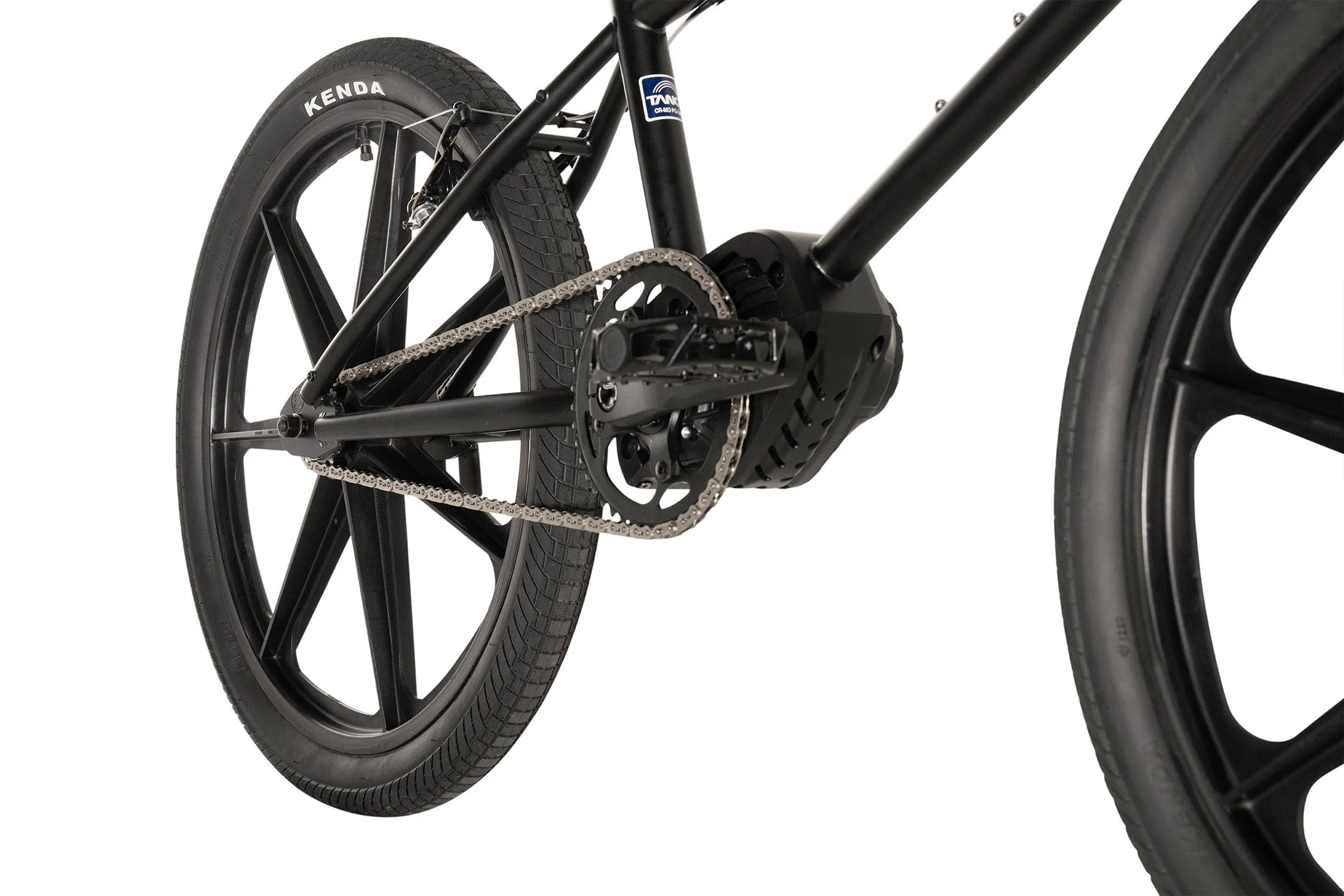

Why Mid Drive?
Using a mid-mounted motor in Project BMX goes far beyond maintaining aesthetics. This kind of motor offers substantial benefits over hub drive systems found on cheaper electric bikes.
The mid-drive allows for optimal weight distribution for handling, a smoother and more natural pedal assist feeling, and eliminates the drawbacks of adding rotational mass to the rear wheel. They are also quieter, and being connected directly to the crank increases the motor’s efficiency to make the most of the bike’s range.

KEEPING IT REAL

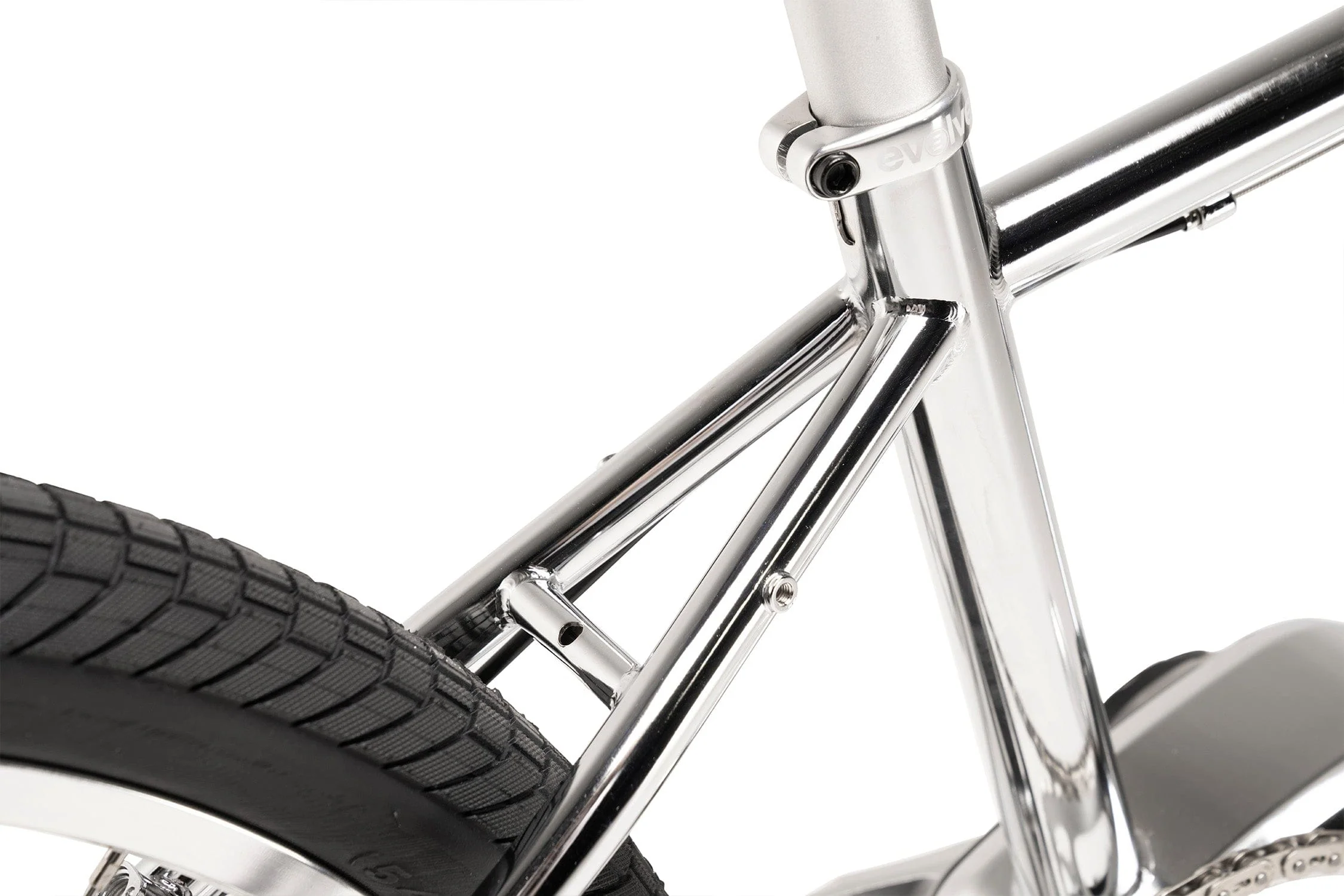

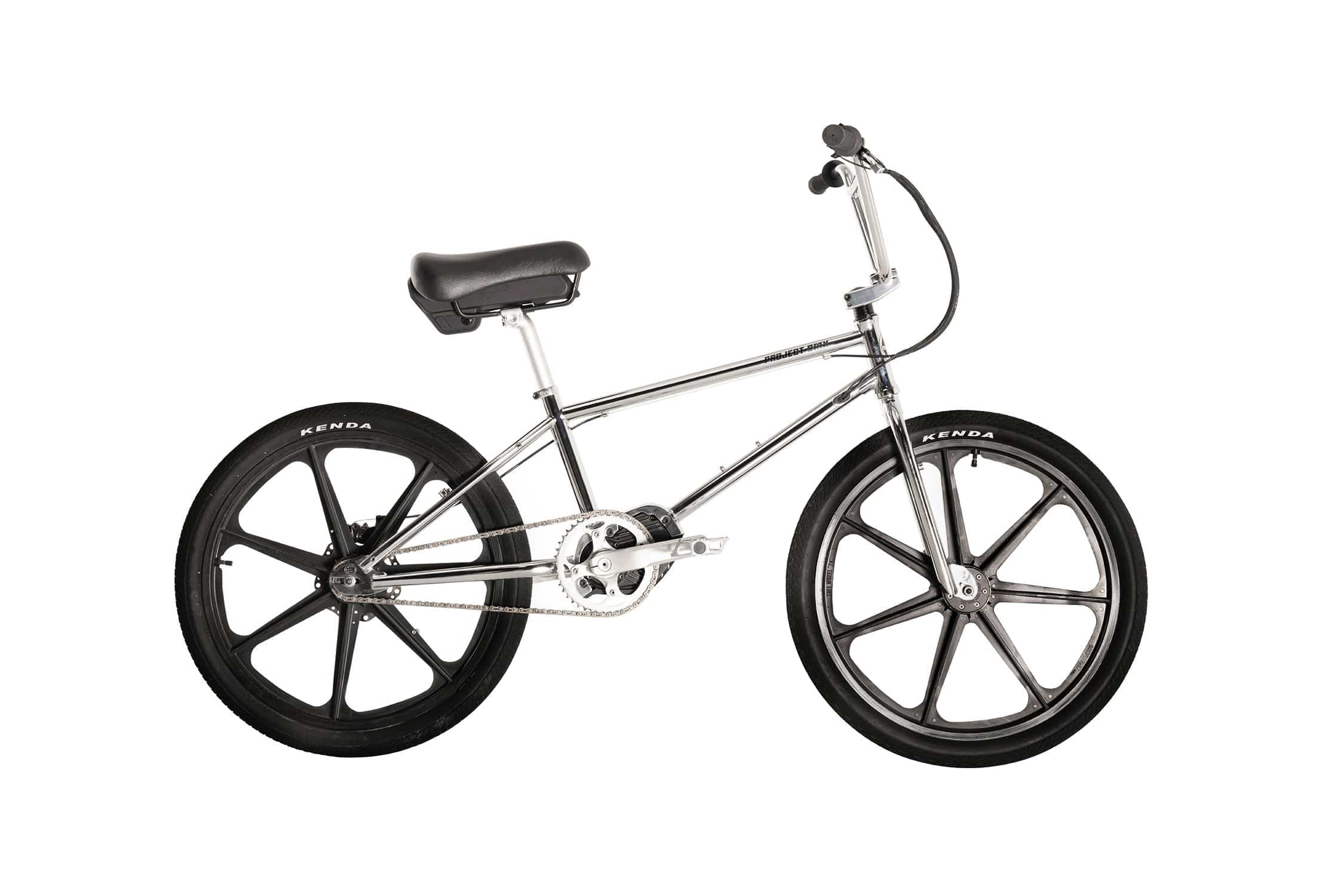

eBikes can be big, bulky, and a little bit ugly. We’ve painstakingly retained the iconic BMX spirit, seamlessly nestling the battery within the seat and embedding a potent mid-drive motor into the frame. The outcome? A sophisticated, perfectly balanced old-school BMX aesthetic that’s guaranteed to draw attention. Project BMX is crafted with premium Chromoly frame and fork tubing courtesy of TANGE. It’s not just a ride but a robust statement of quality.

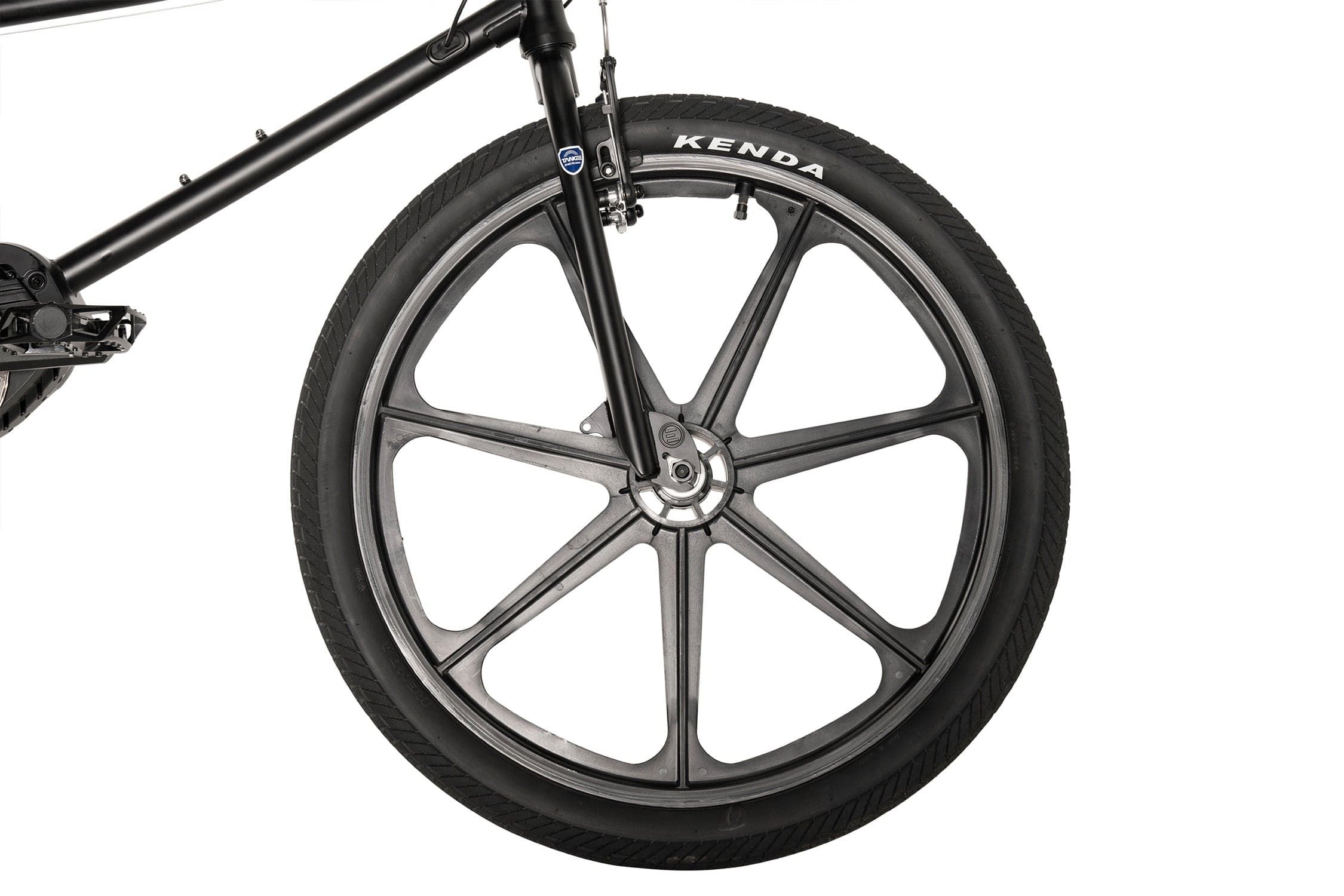

Skyway Tuff Wheels
Skyway Tuff Wheels, proudly crafted in Baldwyn, Mississippi, embody American craftsmanship. Utilising a unique Zytel Nylon blend, they stand as the firmest plastic wheels.

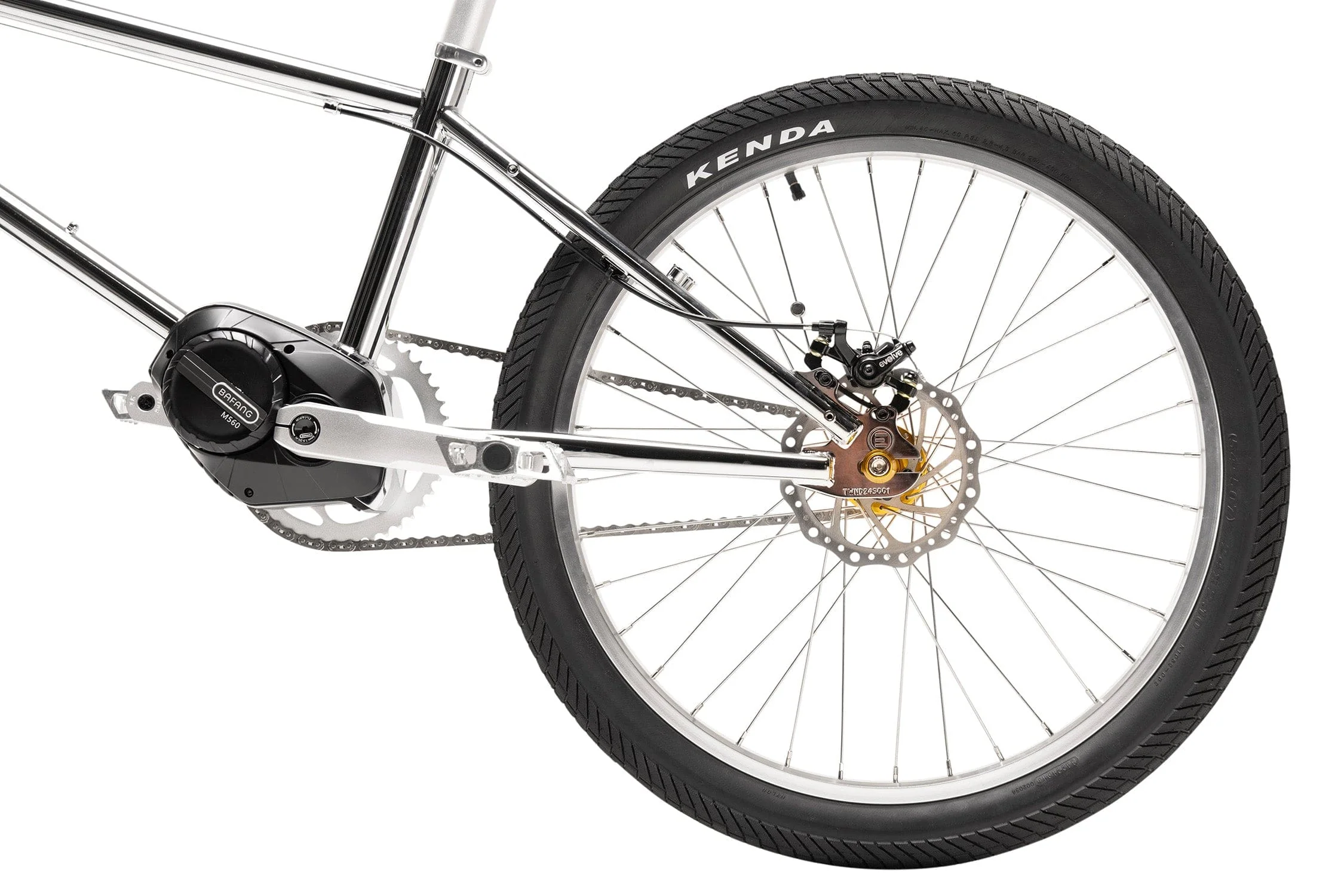

With 45 years in the industry, Skyway is integral to retro BMX, seamlessly enhancing Project BMX's aesthetic. Our hub mount, compatible with a disk rotor on Skyway Tuffs, achieves a timeless appearance while enabling the use of a rear disk brake.

RANGE:	Up to 60 km / 37 miles with Pedal Assist
SPEED:	Up to 36 kph / 23 mph Pedal Assist + Throttle
WEIGHT:	20.5 kg (45 lbs)
MODES:	5-Speed modes
MOTOR:	Bafang M560 Mid Drive Motor
RANGE:	Up to 25km / 15.5 miles
FIRMWARE:	500W / 250W
VOLTAGE:	48V
RATED POWER:	750W (LIMITED BY FIRMWARE)
WEIGHT:	3.3KG
GEAR:	STEEL
CRANK ARM:	17OMM
BATTERY:	36V 9.6 AH SAMSUNG 48X 21700
WH (WATT-HOUR):	345.6 WH
WEIGHT:	2KG
LOCK:	BUILT-IN LOCK POINT
CHARGE:	3 HOURS
LED Display:
SPEEDOMETER:	KPH / MPH
LED REAR LIGHT CONTROL:	3 MODES
IP RATED:	X5
WALK ASSIST MODE:	YES
FRAME SET:	Lightweight & Strong Chromoly Frame
MATERIAL FRAME:	CHROMOLY
TESTING:	ISO4210
ADJUSTABILITY:	140MM POST ADJUSTMENT
HEADSET:	INTEGRATED
WEIGHT LIMIT:	130 kg
SADDLE MATERIAL:	NYLON + CARBON FIBER
SADDLE CERTIFICATION:	ISO 4210
SADDLE ADJUSTABILITY:	ANGLE + FRONT TO BACK
WHEELS	Spokes 24”/Skyway Tuffs 24”

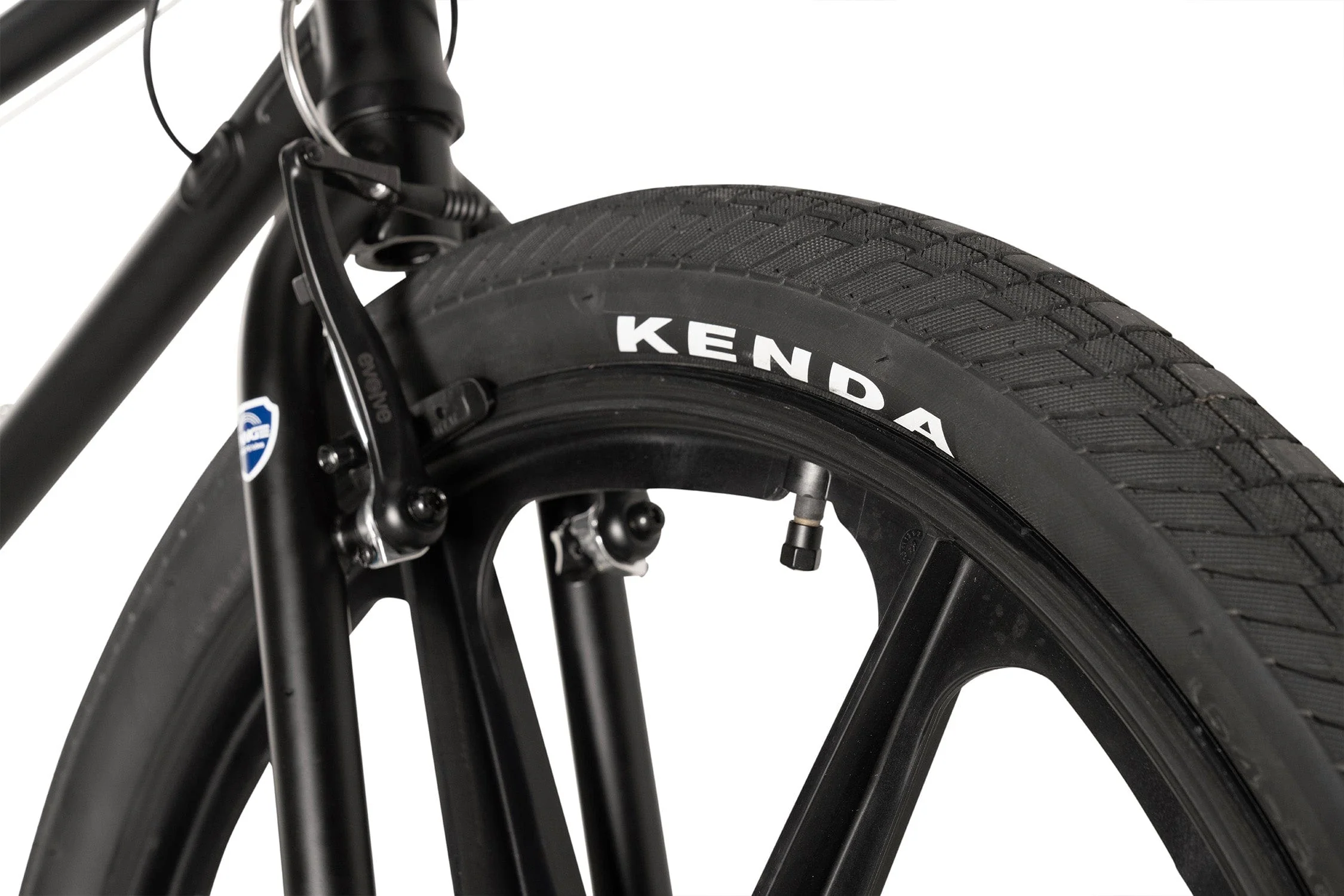

BRAKES:	Mechanical Disk 160mm 24” (front V brake on Skyway Tuff wheels)
TYRE:	KENDA ROAD SLICK 24” X 2.10
INNER TUBE:	24X1.9/2.125 SCHRADER VALVE
